1 / 3Foil Adhesive Tape
Aluminum, copper, and reinforced foil adhesive tape for HVAC sealing, EMI/RFI shielding, thermal management, and heavy-duty industrial applications.
Core Types
Aluminum foil / Copper foil (conductive / non-conductive) / Reinforced composite (PET or glass fiber laminated)
Adhesive Options
Acrylic / Silicone / Synthetic rubber
Key Properties
Thermal conductivity, EMI/RFI shielding, chemical resistance, UV and weather resistance
Release Liners
Easy-peel paper / PET film — configured to application and dispensing format
Overview
ALS Tape supplies foil adhesive tapes for sealing, shielding, and thermal management across HVAC, electronics, automotive, aerospace, and construction. Three core constructions cover the main application directions: aluminum foil tape for heat reflection, thermal insulation, and duct sealing; copper foil tape (conductive and non-conductive variants) for EMI/RFI shielding, electrical grounding, and sensitive component protection; and reinforced and composite foil tape laminated with PET film or glass fiber for heavy-duty applications requiring extra tensile strength, tear resistance, and puncture protection. Adhesive systems include acrylic, silicone, and synthetic rubber, available in custom slit widths, variable adhesive thicknesses, and tailored release liners for production compatibility. Foil tapes are slit to width or die-cut into grounding tabs, shielding frames, strips and kiss-cut parts on liner.
Category Focus
Industrial Tape
Masking, splicing, foam, and foil adhesive tapes for process protection, web handling, and production support.
What to expect when you order
- Minimum order
- 1 roll of standard material; die-cut parts from 100 pcs
- Samples
- Stock material samples are free; custom die-cut samples take 3–9 days and are quoted per part
- Production lead time
- 2–14 days after the order and drawing are confirmed
- Cutting tolerance
- ±0.05–0.2 mm on cut outlines, depending on material and thickness
- Material proof
- Photos of the original roll labels with batch numbers; CoC or CoA on request
- Shipping
- FOB or DDP (duties included). To the US: air about 7 days, sea about 45 days
Send the grade, thickness and a drawing or sample. A business manager replies within 24 hours.
Request a quoteTypical Grades and Specification Direction
Swipe sideways to see all columns →
| Model | Thickness (no liner) | Construction | Adhesive | Key data (3M) | Typical use |
|---|---|---|---|---|---|
| 3M 1181 | 0.066 mm | 1 oz copper foil (0.04 mm) | Conductive acrylic | 0.005 Ω/sq through adhesive (MIL-STD-202, 5 psi, 1 in²); >85 dB, 1 MHz–2 GHz; −40 to 130 °C | EMI seams, grounding tabs, cable wraps; solderable |
| 3M 1194 | 0.066 mm | 1 oz copper foil | Non-conductive acrylic | Adhesion to steel 4.4 N/10 mm | Shielding where contact is made by soldering or the foil face, not through the adhesive |
| 3M 1170 | 0.081 mm | Aluminum foil (0.05 mm) | Conductive acrylic | 0.010 Ω through adhesive (MIL-STD-202, 5 psi, 1 in²); 60–75 dB, 30 MHz–1 GHz | Lower-cost EMI shielding and grounding, lighter than copper |
| 3M 425 | 0.12 mm | Dead-soft aluminum foil | Acrylic | −54 to 149 °C; UL 723 Class L, UL 746C recognized | Heat and light reflection, moisture barrier, masking in chemical paint stripping |
| 3M 363 | 0.19 mm | Aluminum foil on glass cloth | Silicone | −54 to 316 °C continuous; 180° peel 5.7 N/cm; tensile 236 N/cm | High-temperature protective wraps over cables, insulation and instruments |
Common 3M aluminum and copper foil grades, with data from 3M's data sheets. We confirm stock and roll widths for each quote.
Key Features

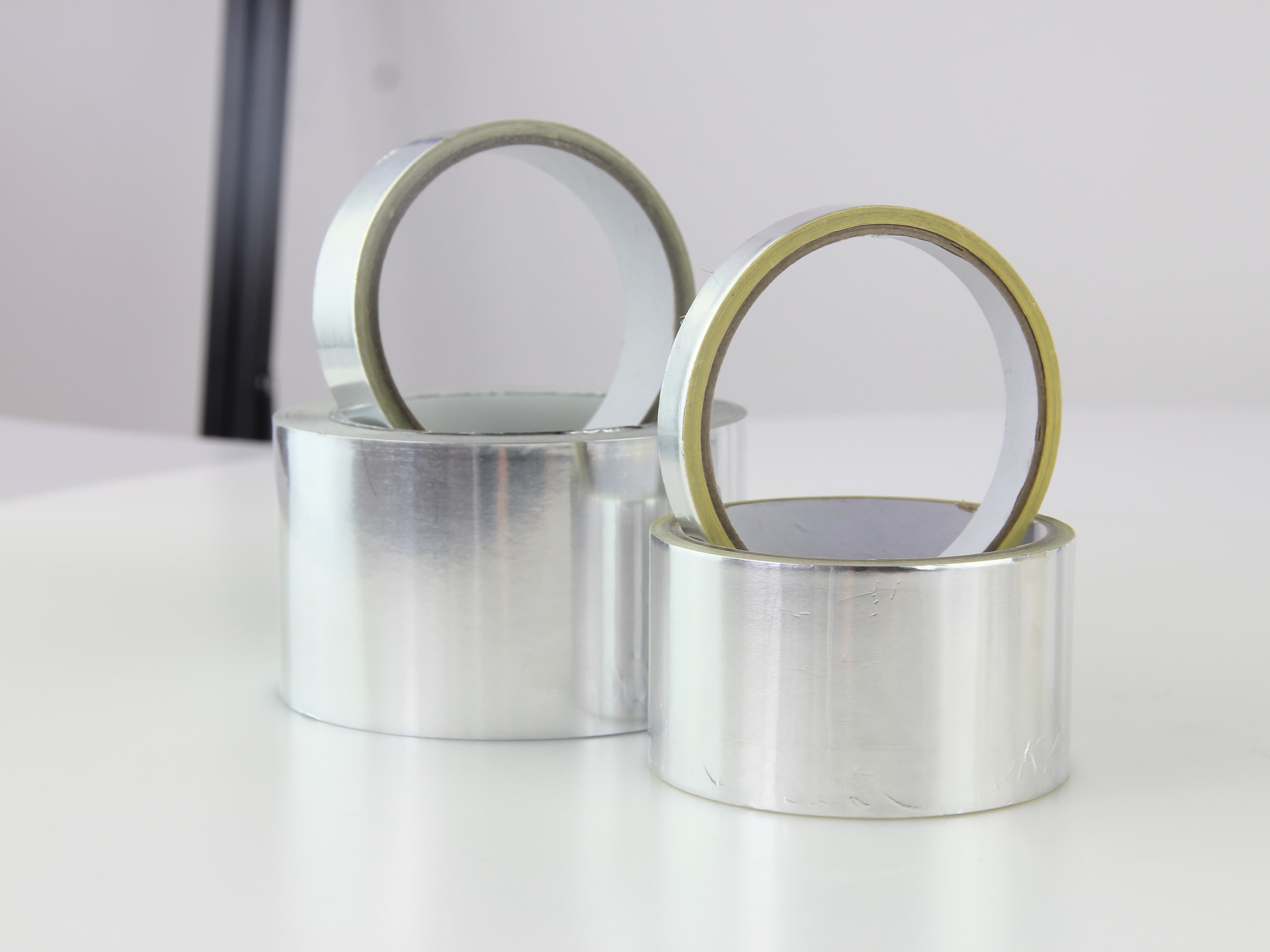

Aluminum Foil Tape — Excellent heat reflection and barrier properties for HVAC duct sealing, thermal insulation wrapping, and general industrial maintenance requiring a clean, conformable metallic seal.

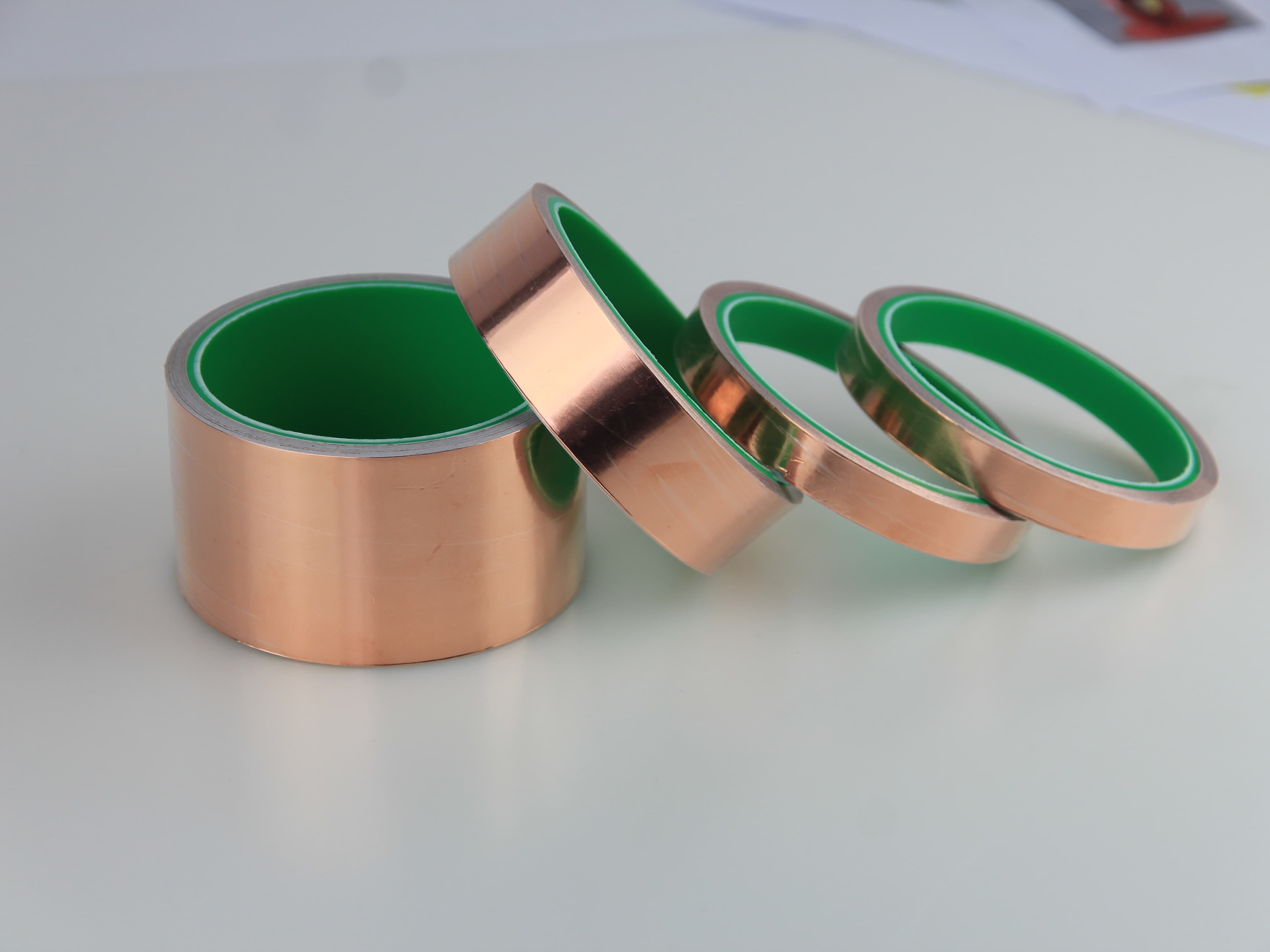

Copper Foil Tape — Superior electrical conductivity in conductive and non-conductive adhesive variants. Specifically designed for EMI/RFI shielding, electrical grounding, and protection of sensitive electronic components.
Reinforced & Composite Foil Tape — Laminated with PET film or glass fiber for heavy-duty joining, sealing, and protection tasks that require extra tensile strength, tear resistance, and puncture protection.
Flexible Adhesive Systems — Acrylic, silicone, and synthetic rubber adhesive options to match temperature range, surface compatibility, and long-term performance requirements.
Custom Converting Support — Precision slit widths, variable adhesive thicknesses, and custom release liners (easy-peel paper or PET film) to suit automated assembly lines and specific application geometry.
Broad Industry Coverage — Proven in HVAC systems, electronics and appliances, automotive and aerospace, and outdoor construction and pipeline protection.
Applications
HVAC fiberglass and rigid sheet metal duct sealing and thermal insulation
EMI/RFI shielding and electrical grounding in electronics and appliances
Wire harness wrapping and heat dissipation in automotive and industrial equipment
Heat shielding and environmental sealing in automotive and aerospace assemblies
Heavy-duty outdoor pipeline protection and vapor barrier sealing in construction
Specialized paint stripping masking in automotive refinishing processes
FAQ
Which foil tape is best for EMI shielding?
Copper foil tape with a conductive adhesive, such as 3M 1181, has the lowest resistance and can be soldered, so it is the usual choice for grounding tabs and seams. Aluminum foil tape with conductive adhesive, such as 3M 1170, is lighter and lower in cost. If the tape must connect through its adhesive face, choose a conductive adhesive.
What is the difference between conductive and non-conductive adhesive foil tape?
A conductive adhesive contains particles that carry current from the foil to the surface below, so the tape grounds through its whole bonded area. A non-conductive adhesive insulates the foil from the surface; it suits heat reflection, moisture barriers and shielding where contact is made by soldering or by the foil face.
Which aluminum foil tape handles high temperature?
3M 363, an aluminum foil laminated to glass cloth with silicone adhesive, is rated by 3M for continuous use from −54 to 316 °C. 3M 425 with acrylic adhesive is rated from −54 to 149 °C and carries UL 723 Class L low-flammability classification.
Can foil tape be die-cut into custom shapes?
Yes. Foil tapes are slit to custom widths or die-cut into tabs, frames, strips and shapes, either as loose parts or kiss-cut on a liner for automatic placement. Die-cut parts start from 100 pcs and custom samples take 3–9 days.
Do you supply other foil tape grades?
Yes. The table lists common 3M grades. Other aluminum, copper, tin-plated copper and reinforced foil tapes can be sourced on request; send the grade or the data sheet you are working from and we confirm availability, width and price.
