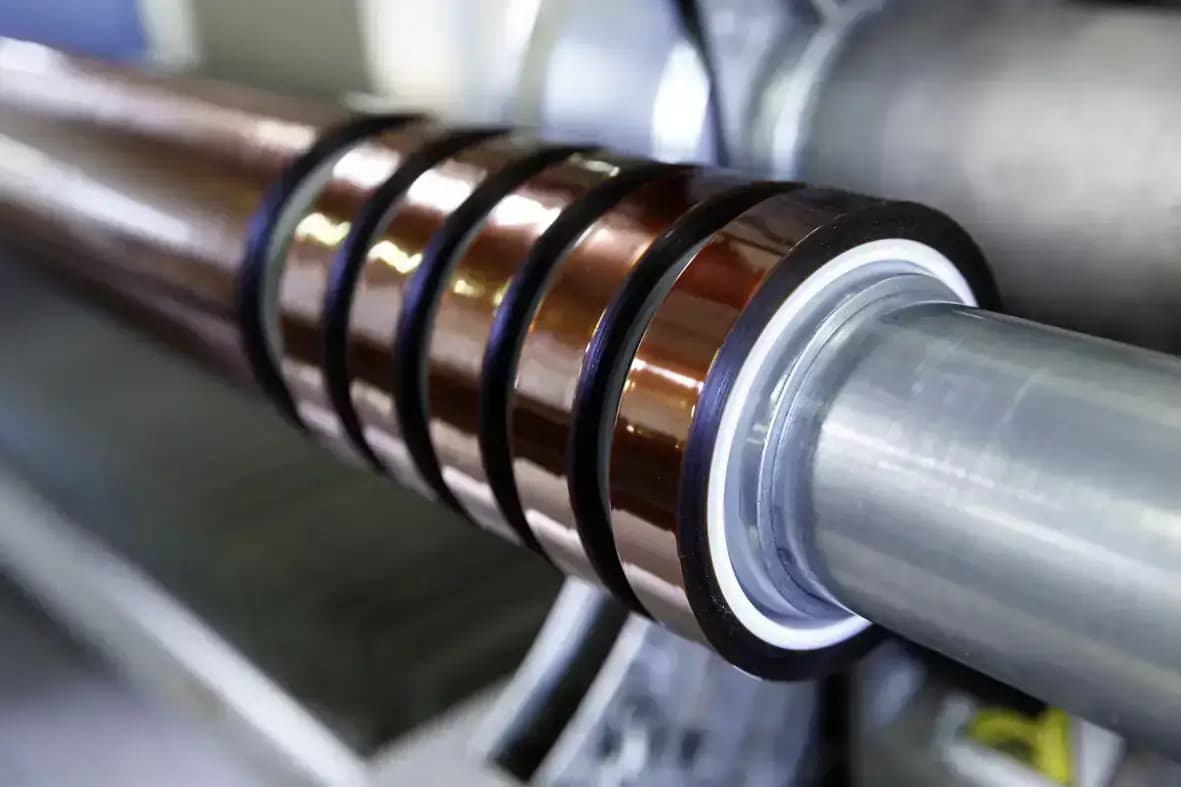

Spooling & Rewinding
Precision tape slitting and rewinding service. Slit master rolls up to 63 inches wide to 1/10 inch widths with ±0.004 inch tolerance. Custom core sizes: 1", 1.5", 3".
Overview
ALS Tape provides precision slitting and rewinding services for adhesive tapes, films, foams, and specialty materials. Master rolls up to 63 inches wide can be slit to widths as narrow as 1/10 inch, with dimensional tolerance of ±0.004 inch maintained through tension-controlled rewinding. Available core sizes are 1-inch, 1.5-inch, and 3-inch to match line-side handling requirements. Spooling creates seamless extra-long reels spanning hundreds to thousands of feet, precision-cut for smooth liner removal, and suited to automated dispensing and extrusion-line applications. Materials processed include transfer tapes, polyimide films, foams, protection films, tissue, UPVC, polypropylene, and PTFE.
Process Options
Precision slitting from master rolls up to 63 inches wide to widths as narrow as 1/10 inch.
Tension-controlled rewinding to ensure uniform roll geometry and edge quality.
Spooling for seamless extra-long continuous reels for automated dispensing.
Core conversion across 1-inch, 1.5-inch, and 3-inch core formats.
Supported Materials
Transfer tapes and pressure sensitive adhesive rolls
Polyimide and functional films
Foam and elastomer sheet materials
Protection films, tissue, UPVC, polypropylene, and PTFE
Typical Applications
Line-side tape supply in controlled widths and roll formats
Slit rolls for electronics assembly and bonding operations
Long-reel spools for automated tape dispensing equipment
Custom roll formats for extrusion and web processing lines
Medical and HVAC tape supply in application-ready dimensions
Material Groups and Delivery Support
Related Products
Related Industries
FAQ
What is the minimum slit width available?
Materials can be slit to a minimum width of 1/10 inch from master rolls up to 63 inches wide, with ±0.004 inch dimensional tolerance.
What core sizes are available for rewound rolls?
Rewound rolls are available on 1-inch, 1.5-inch, and 3-inch cores to match different line-side dispensing and storage equipment.
What is spooling and when is it needed?
Spooling creates seamless extra-long continuous reels spanning hundreds to thousands of feet. It is used when automated dispensing equipment or extrusion-line applications require uninterrupted tape supply without roll changes.
What materials can be slit and rewound?
Transfer tapes, polyimide films, foam sheets, protection films, tissue, UPVC, polypropylene, and PTFE can all be processed through slitting and rewinding.
Need a Converting Partner?
Spooling & Rewinding
Share your drawing, dimensions, material preferences, or downstream assembly requirements. ALS Tape can help align fabrication methods with delivery format.
